Check webhook error causes and statistics

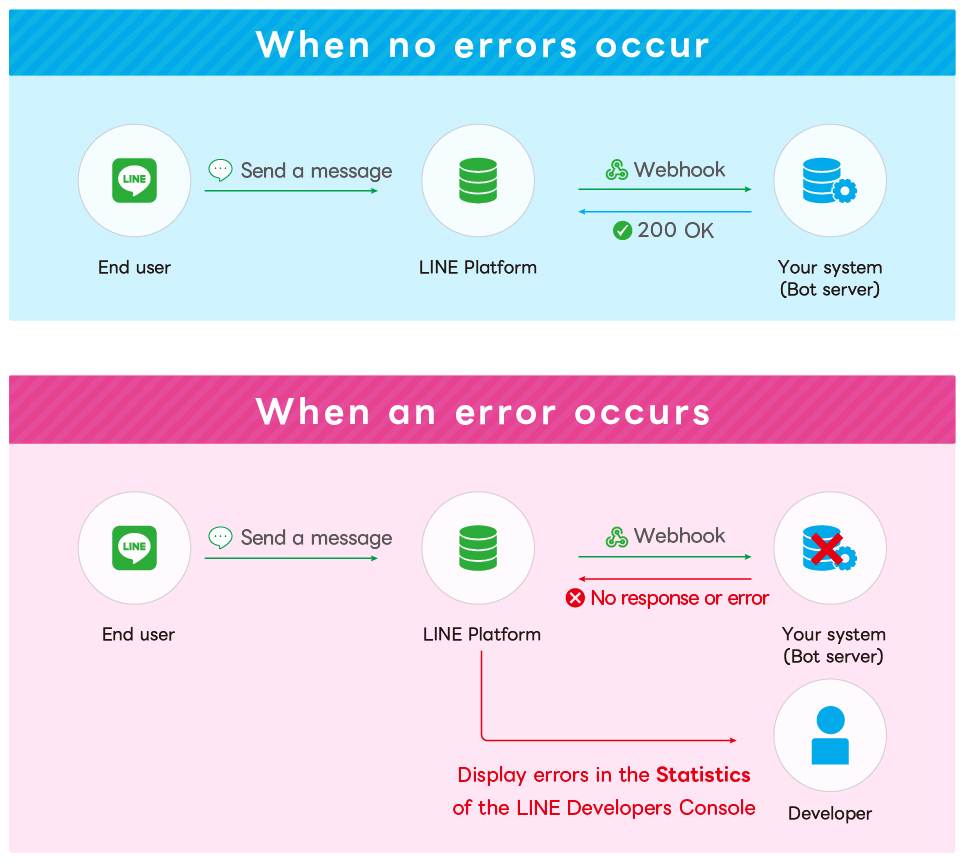

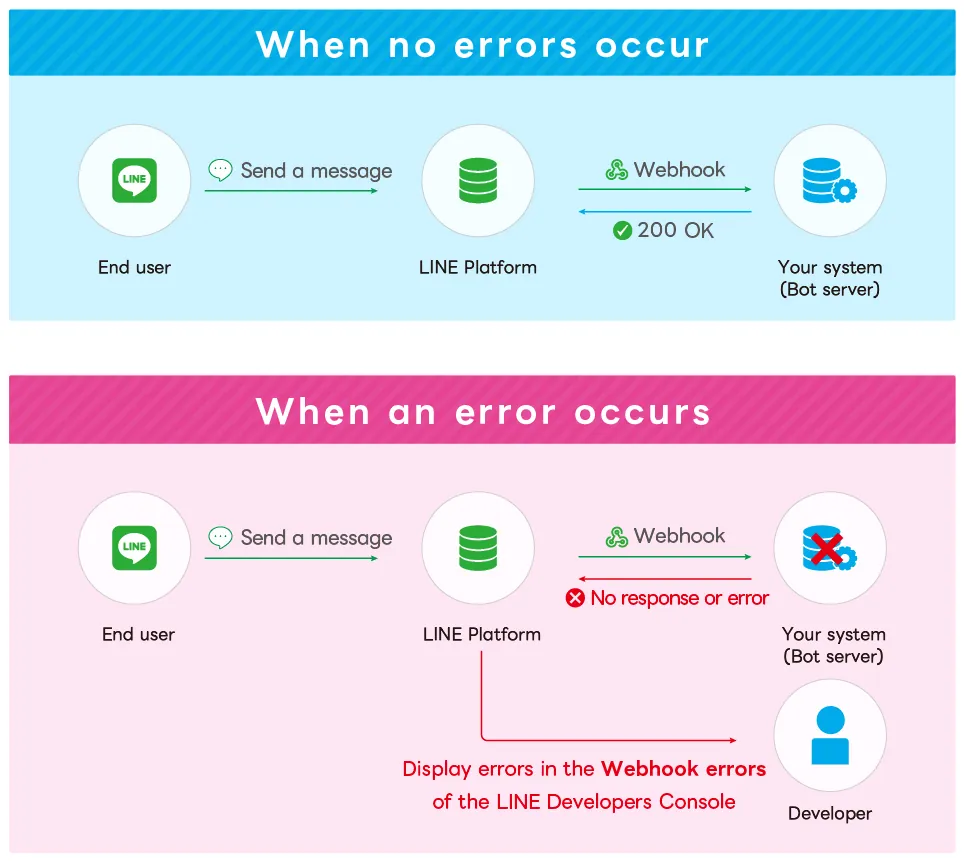

The Messaging API provides a feature to check error causes and statistics when sending webhooks. This is useful for understanding the status of sending webhooks when a webhook wasn't received due to a problem on the bot server, etc.
Enable error statistics
The display of error statistics is disabled by default. To display error statistics, perform the following steps from the LINE Developers Console:
- Open the settings screen of the channel for which you want to display error statistics.
- Click the Messaging API tab.
- Turn on Use webhook.
- Turn on Error statistics aggregation.

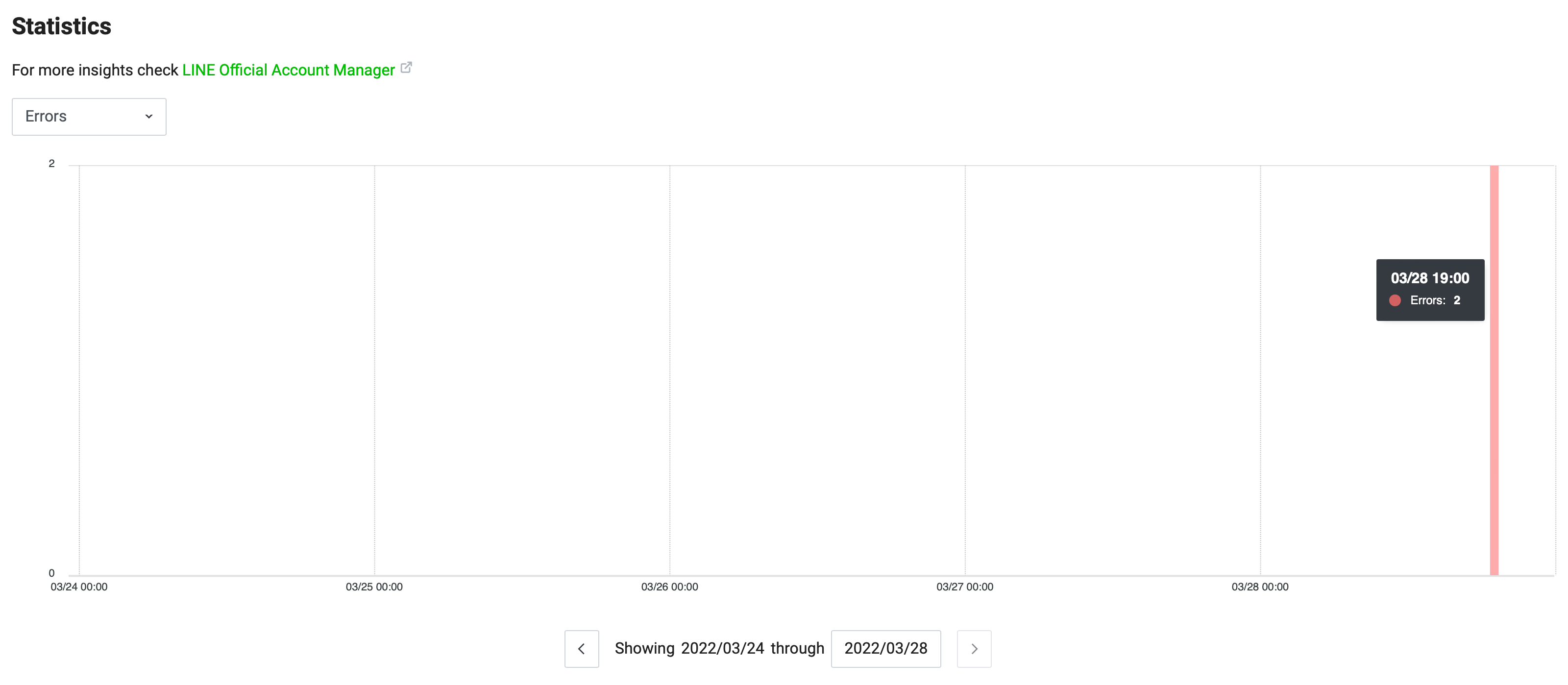

The above will display error statistics. To view the statistics, go to the Statistics tab and select "Errors" from the drop-down. The time zone used for the date and time of the displayed errors is UTC+9.
Error statistics only show webhooks that were actually attempted to be sent. Error statistics don't include requests made to verify a webhook URL, regardless of whether they succeeded or failed.
Check the reason for errors
Error statistics provide the reasons and details for errors. There are four types of reasons.
| Reason for error | Summary |
|---|---|
could_not_connect | The LINE Platform tried to send a webhook to the bot server, but couldn't successfully connect to the bot server. For more information, see The reason is could_not_connect section. |
request_timeout | The LINE Platform sent a webhook to the bot server, but the bot server didn't return a response within 2 seconds. For more information, see The reason is request_timeout section. |
error_status_code | The LINE Platform sent a webhook to the bot server, but the bot server returned a response other than the HTTP status code in the 20x. For more information, see The reason is error_status_code section. |
unclassified | An unknown error occurred that can't be categorized above. For more information, see The reason is unclassified section. |
Check the detail for errors
The details for each reason are as follows:
- The reason is could_not_connect
- The reason is request_timeout
- The reason is error_status_code
- The reason is unclassified
The reason is could_not_connect
If the LINE Platform tried to send a webhook to the bot server, but couldn't successfully connect to the bot server, the reason will be could_not_connect. The details in this case are as follows.
| Detail for error | Summary |
|---|---|
Connection failed | Failed to connect to bot server. |
Connection failed (received GOAWAY) | Connection refused when connecting to bot server. |
Connection failed (session closed) | Connection to the bot server was unexpectedly terminated. |
Connection timeout | Connection to the bot server didn't complete within a certain period of time. |
DNS Query timeout | Webhook URL name resolution was performed, but name resolution couldn't be completed within a certain period of time. |
Invalid URL syntax | An invalid webhook URL is specified (e.g., RFC violation). |
Session protocol negotiation failure | Connected to bot server, but protocol negotiation failed. |
No SSL/TLS record | The bot server response isn't SSL/TLS encrypted. |
TLS handshake failure | Connected to bot server, but TLS handshake failed. Check if the bot server supports SSL/TLS specification of the webhook source. |
Unknown host | The host specified in the Webhook URL couldn't be found. |
The reason is request_timeout
If a webhook is sent from the LINE Platform to the bot server, but the response isn't received by the LINE Platform or the sending fails midway, the reason will be request_timeout. The details in this case are as follows. Note that the webhook may have been successfully received by the bot server.
| Detail for error | Summary |
|---|---|
Request timeout | Webhook was sent to the bot server, but no response was returned within a certain period of time. |
The reason is error_status_code
If the reason is error_status_code, the details will contain the HTTP status code.
The reason is unclassified
If an unclassified error occurs, the reason is unclassified. The details in this case are as follows.
| Detail for error | Summary |
|---|---|
Session closed unexpectedly | A webhook was sent to the bot server, but the connection was unexpectedly closed. |
Stream closed unexpectedly | A webhook was sent to the bot server, but the stream was unexpectedly closed. |
Unclassified webhook dispatch error | An unclassifiable and unexpected error occurred. |
Enable webhook redelivery to prepare for errors
By enabling webhook redelivery in advance, if your bot server fails to receive a webhook and an error occurs, the webhook will be resent to your bot server. For more information, see Redeliver a webhook that failed to be received.
