# Get statistics of sent messages
You can get statistics per aggregation unit of how users interact with push messages and multicast messages you send to multiple users.
Normally, you can't get statistics about actions that users perform on messages, such as opening a message or tapping a URL, to protect user privacy. However, it is possible to get statistics by aggregating into units you define and making it impossible to identify individuals.

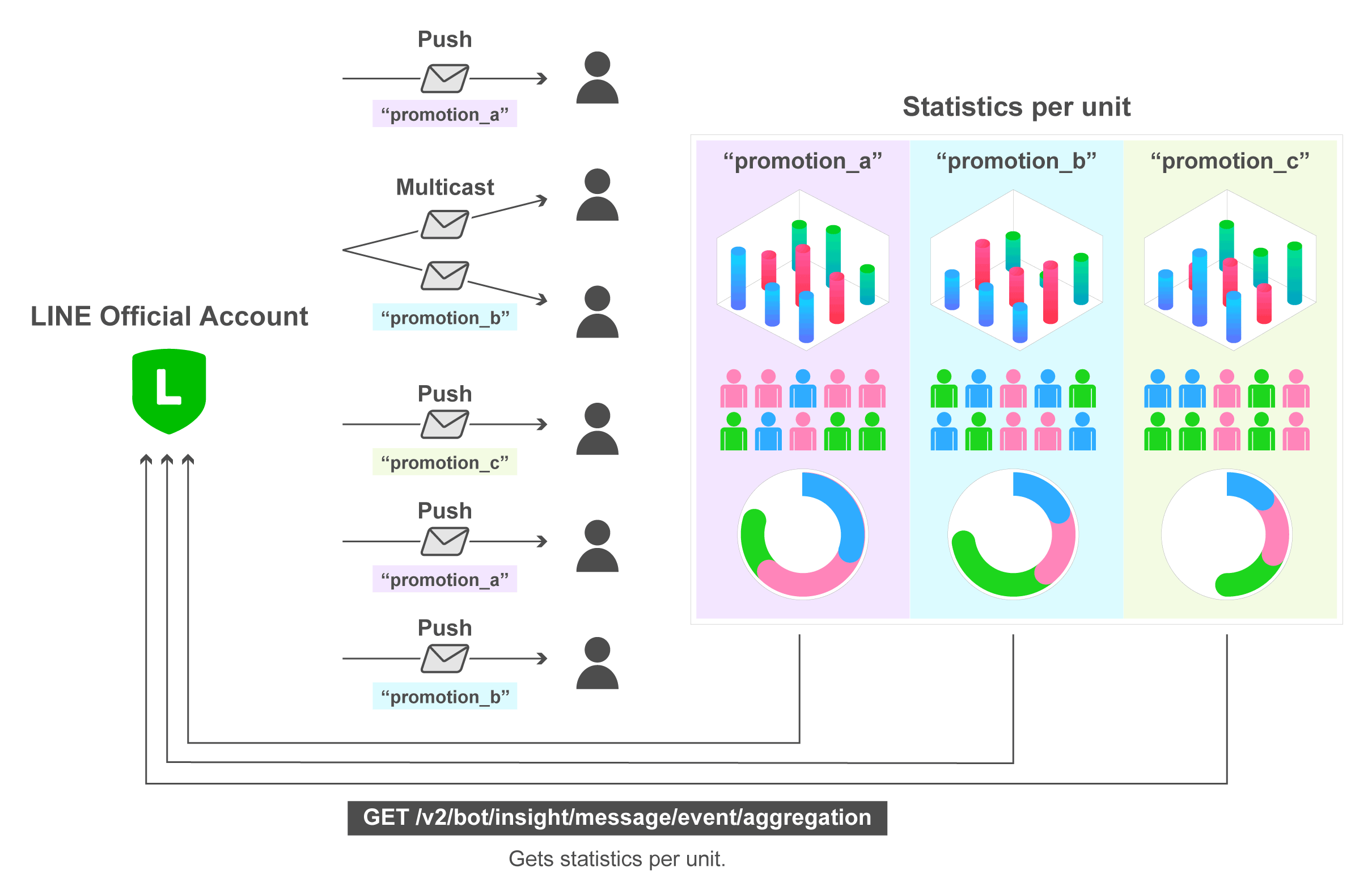

As illustrated below, you can get statistics for each unit by assigning a unit name and sending a message.
# What are message statistics
You can get the following statistics per unit about your messages:
- Number of users who opened the message
- Number of users who opened any URL in the message
- Number of users who started playing any video or audio in the message
By getting message statistics, you can see what users have done with the messages you sent. By using such statistics, the following information can be checked:
Example of using got statistics
Number of recipients | Number of openings | Opening rate | Number of URL taps | URL tap rate |
---|---|---|---|---|
500 | 433 | 87% | 323 | 65% |
# Notes on aggregated statistics
The statistical data may contain some errors. To protect users' privacy, the values of some properties related to user interactions will be displayed as null
in these cases:
- The value of the aggregated statistics is less than 20.
- Even if the value of the aggregated statistics is higher than or equal to 20, the actual number of users who generated the event is less than 20.
- For example, if the number of times the video has been started is 30, but the number of users who have started the video is 15, both will be displayed as
null
.
- For example, if the number of times the video has been started is 30, but the number of users who have started the video is 15, both will be displayed as
# Assign a unit name
To aggregate data, you must assign an aggregation unit name to push messages or multicast messages when you send the messages. To assign a unit name to a push or multicast message, specify the name in the customAggregationUnits
property of the request body. You can only specify one unit name when you send the messages. For the specification on sending push messages or multicast messages, see Message in the Messaging API reference.
Here is an example request to assign an aggregation unit name, promotion_a
, on a push message:
curl -v -X POST https://api.line.me/v2/bot/message/push \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer {channel access token}' \
-d '{
"to": "U4af4980629...",
"messages":[
{
"type": "text",
"text": "Hello, world1"
}
],
"customAggregationUnits": [
"promotion_a"
]
}'
You can't assign or change a unit name on a push message or multicast message after you send the message.
# Maximum number of unit name types
During the current month (from the 1st to the last day of the month), you can send messages with up to 1,000 different unit names.
For example, if you send messages in March with 1,000 unit name types from promotion_0001
to promotion_1000
, you can send messages in the next month (April) with the same 1,000 unit name types from promotion_0001
to promotion_1000
. It is also possible to send messages with 1,000 new unit name types, from promotion_1001
to promotion_2000
, in the next month (April).
Note that when messages are sent with the 1,001st or later unit name type, those unit names are treated as if they weren't assigned to the messages. For example, if you send messages with 1,500 unit name types from promotion_0001
to promotion_1500
, the messages will be sent for the 1,001st unit name type after promotion_1001
, but the unit names won't be assigned to the messages.
You can get the number of unit names assigned during this month by using the Get the number of unit name types assigned during this month endpoint.
There is a limit of "up to 1,000 unit name types in this month" when assigning unit names, but if you get statistics per unit after sending a message, you can get statistics for all units that exist from from
to to
for the period covered by the aggregation.
# Get statistics per unit
You can get user interaction statistics for push messages and multicast messages sent with unit names by using the Get statistics per unit endpoint. Here is an example request to get statistics of a unit named promotion_a
:
curl -v -X GET https://api.line.me/v2/bot/insight/message/event/aggregation \
-H 'Authorization: Bearer {channel access token}' \
--data-urlencode 'customAggregationUnit=promotion_a' \
--data-urlencode 'from=20210301' \
--data-urlencode 'to=20210331' \
-G
In addition, you can get a list of unit names assigned in this month by using the Get a list of unit names assigned during this month endpoint. There is no endpoint to check unit names assigned before the previous month.
# Example of getting statistics of a message containing a URL
Here is an example of the steps to get statistics of a message containing a URL on a per unit:
# 1. Send a message by assigning a unit name

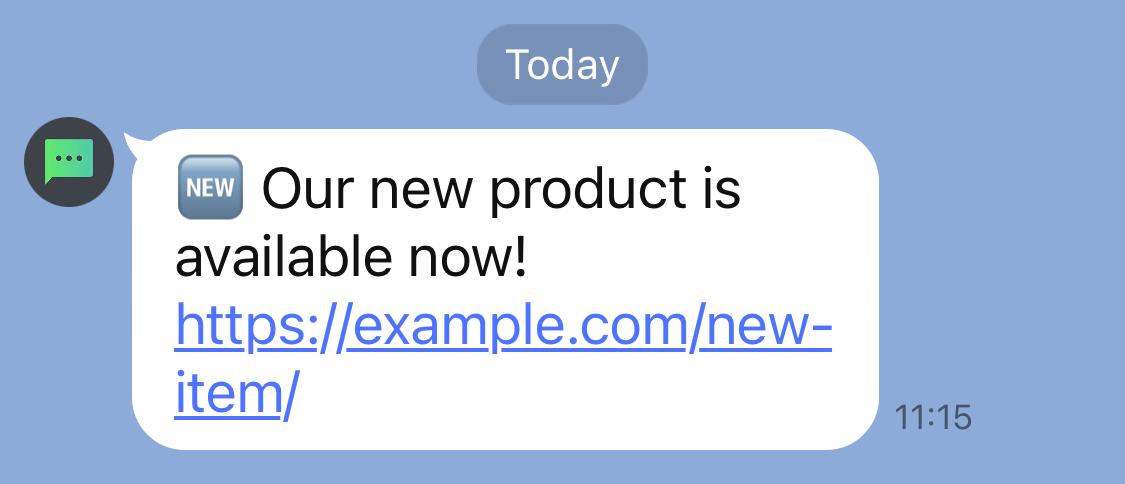

First, send a message with the same content to multiple users.
Suppose we want to send the message to 150 users using multicast messages. The unit name is then specified in the customAggregationUnits
property.
curl -v -X POST https://api.line.me/v2/bot/message/multicast \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer {channel access token}' \
-d '{
"to": ["U4af4980629...","U0c229f96c4...",...], // 150 user IDs
"messages":[
{
"type": "text",
"text": "🆕 Our new product is available now!\nhttps://example.com/new-item/"
}
],
"customAggregationUnits": [
"new-item-message-yyyymmdd"
]
}'
# 2. Get and aggregate statistics
Wait a few days after sending the message to get statistics per unit.
curl -v -X GET https://api.line.me/v2/bot/insight/message/event/aggregation \
-H 'Authorization: Bearer {channel access token}' \
--data-urlencode 'customAggregationUnit=new-item-message-yyyymmdd' \
--data-urlencode 'from=20210301' \
--data-urlencode 'to=20210331' \
-G
In this example, the following statistics can be obtained:
{
"overview": {
"uniqueImpression": 111,
"uniqueClick": 74,
"uniqueMediaPlayed": null,
"uniqueMediaPlayed100Percent": null
},
"messages": [
{
"seq": 1,
"impression": 111,
"uniqueImpression": 111,
"mediaPlayed": null,
"mediaPlayed25Percent": null,
"mediaPlayed50Percent": null,
"mediaPlayed75Percent": null,
"mediaPlayed100Percent": null,
"uniqueMediaPlayed": null,
"uniqueMediaPlayed25Percent": null,
"uniqueMediaPlayed50Percent": null,
"uniqueMediaPlayed75Percent": null,
"uniqueMediaPlayed100Percent": null
}
],
"clicks": [
{
"seq": 1,
"url": "https://example.com/new-item/",
"click": 74,
"uniqueClick": 74,
"uniqueClickOfRequest": 74
}
]
}
You can use this information to check message open rates, URL tap rates, etc.
Number of recipients | Number of openings | Opening rate | Number of URL taps | URL tap rate |
---|---|---|---|---|
150 | 111 | 74% | 74 | 67% |
# Get statistics on narrowcast messages or broadcast messages
By using the Get user interaction statistics endpoint, you can get statistics about how users interact with narrowcast messages or broadcast messages sent from your LINE Official Account. For more information, see Get user interaction statistics in the Messaging API reference.
